0.5t lever block CB005

Model			HSH-0.5T
Capacity		tons	0.5
Standard lift		m	1.5
Running test load		Kn	6.3
Effort required to lift rated load		N	340
Strands of load chain			1
Load chain diameter		mm	5

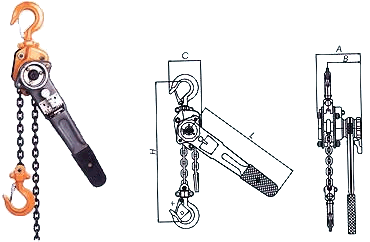

Dimensions(mm)	A		105
	B		78
	C		80
	D		35
	Hmain		260
	L		300
	K		30
Net weight		kg	4
Packing measurement		cm	35.5x9.5x11.5
Extra weight per metre of extra lift		kg	0.52

Model			HSH-0.25A
Capacity		tons	0.25
Standard lift		m	1
Running test load		Kn	3.2
Effort required to lift rated load		N	250
Strands of load chain			1
Load chain diameter		mm	4
Dimensions(mm)	A		92
	B		72
	C		85
	D		30
	Hmain		230
	L		160
	K		25
Net weight		kg	1.8
Packing measurement		cm	22x7x9.5
Extra weight per metre of extra lift		kg	0.41
